Product Description
Quick Details
Type: Elevator Parts
Place of Origin: Zhejiang, China (Mainland)
Brand Name: XINDA
Model Number: TIDE-3D
Detecting range: 0~4m
Qty of infra red diodes TIDE-3D: 17diode(2D),16diode(3D)
Beams of TIED-3D: 94~154
Voice Remainder: 15s after continuous detection
Protection level: IP54
Packaging & Delivery
Delivery Detail: 20 days after 100% T/T in advance
Product Description

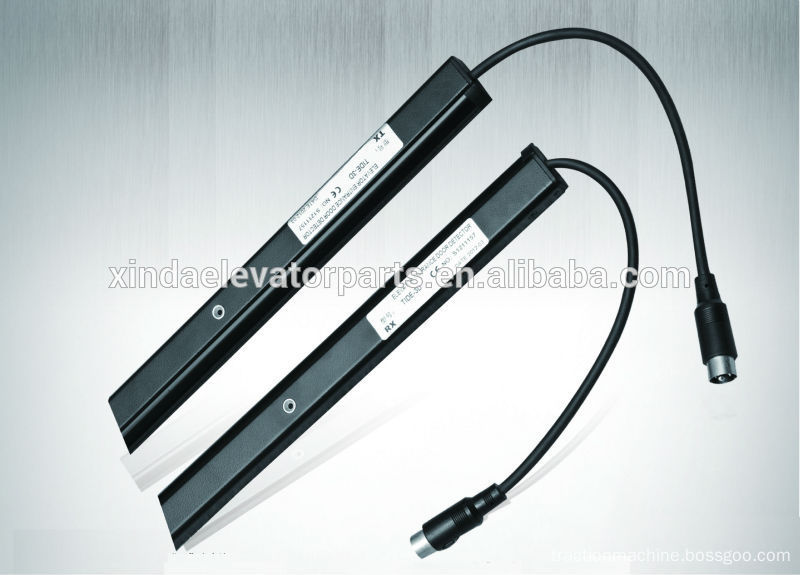

TIDE-3D series integrative 3D Light Curtain for elevator spare parts safety parts

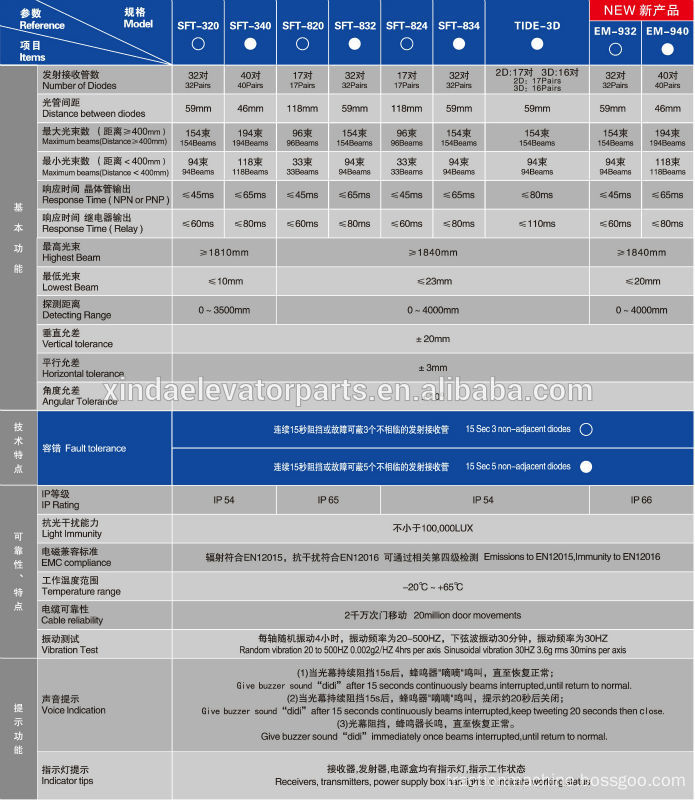

Technical details:
Detecting range: 0~4m
Qty of infra red diodes TIDE-3D: 17diode(2D),16diode(3D)
Beams of TIDE-3D: 94~154
Voice Remainder: 15s after continuous detection
Protection level: IP54
Product characters:
High sensitivity with [2D" and [3D" offering maximum passenger protection;
Compared with conventional light curtain, the combined system can be convene installed and debugged ,and do not need extra component and complicated debugging procedures;
1)154 criss-cross plane beam ;
2)Built in [3D" with 24 beams.(Automatically shield the 3D beams when the door closing in place)
Functional settings which are more adaptive to field installation;
1) Mode select for validity of 3D function: Whole journey or shield 3D beams after 10 seconds;
2) To adjust 3D sensitivity according to changing site environment : High sensitivity Low sensitivity and close3D function;
Outstanding performance of resisting electromagnetic interference
